AMF Planet 600mm x 600mm Ceiling Tile | Square Edge | 20 Tiles per Box | Acoustic

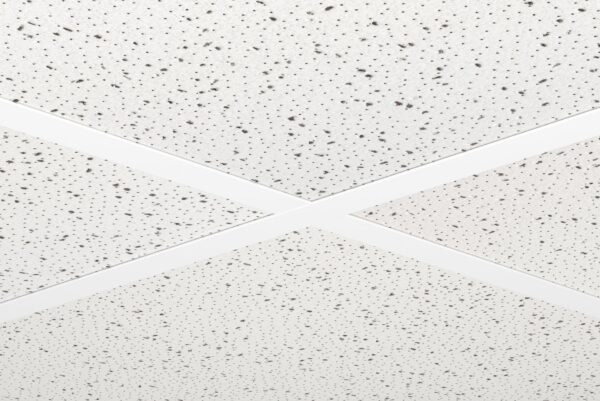

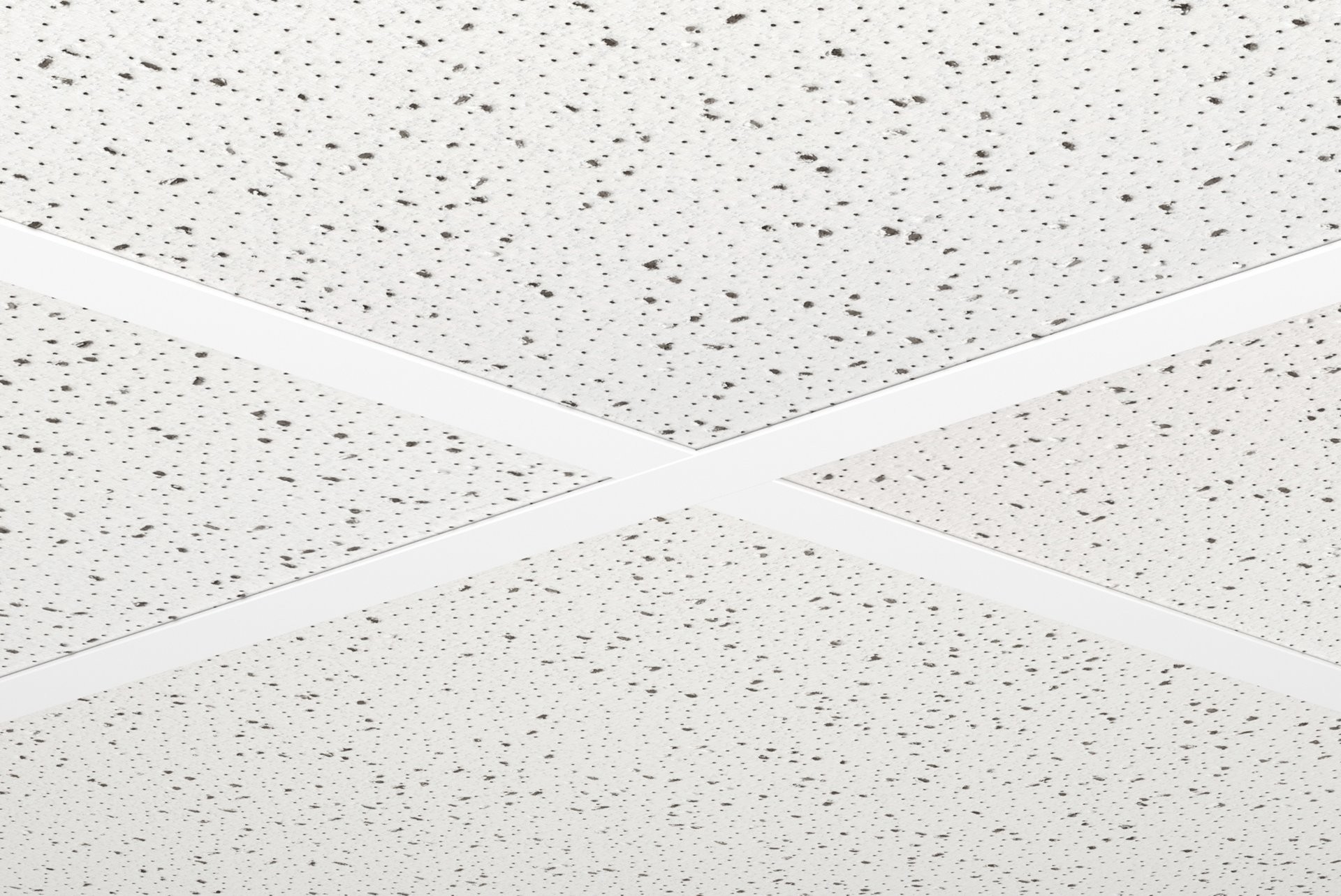

AMF Ecomin Planet – Square Edge Ceiling Tile

Description
The AMF Ecomin Planet Square Edge ceiling tile is manufactured from a new generation of bio-soluble mineral wool, clay, and starch. Designed to deliver excellent fire resistance, acoustic performance, and durability, this tile is the ideal choice for commercial and office environments.

Due to reproduction processes, colours shown may differ from the actual product. Final selection should always be made from AMF samples.

System

• Type: SYSTEM C – Exposed Grid System, demountable ceiling

• Dimensions: 600 x 600 mm, 625 x 625 mm (tolerances as per EN 13964)

• Thickness / Weight: 13 mm nominal (approx. 3.6 kg/m²)

• Edge Detail: SK (Square Edge)

• Colour: White (similar to RAL 9010)

Technical Performance

• Reaction to Fire: A2-s1, d0 (EN 13501-1)

• Sound Absorption:

  • αw = 0.55 (EN ISO 11654)

  • NRC = 0.55 (ASTM C 423)

• Light Reflectance: Up to 88%

• Thermal Conductivity: λ = 0.052 – 0.057 W/mK (DIN 52612)

• Humidity Resistance: Up to 70% RH

Important Information

• All technical data provided is based on test reports under laboratory conditions. Customers must ensure suitability for their specific application.

• AMF ceiling systems performance is guaranteed only when installed with AMF products and approved system components.

• Mixing production batches on-site is not recommended.

• Technical data is subject to change without prior notice and governed by AMF Terms and Conditions of Sale.

• This catalogue supersedes all previous editions. Errors and omissions excepted.
