Vitrage (dB) is the new addition to the Tenon Vitrage range of office partitioning. Please see the downloads section and information below detailing Vitrage & Vitrage (dB) – double-glazed frameless glass partitioning.

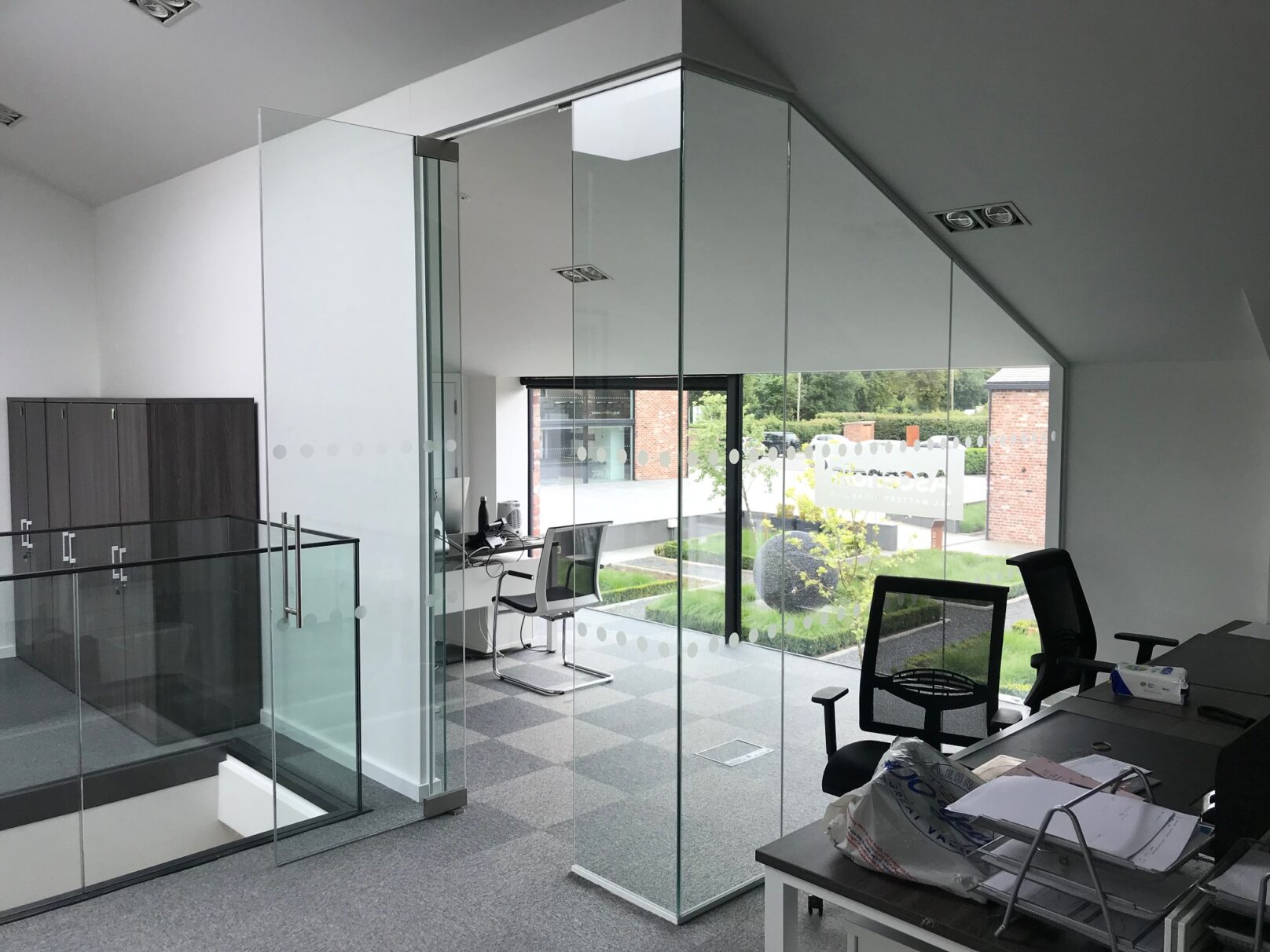

Tenon Vitrage is a double or single-glazed partition system that combines function with the clear, aesthetic benefits of silicone glazing.

Using a minimum number of aluminium framing sections, Vitrage provides an office divide that allows unhindered vision whilst maintaining the privacy of individual offices.

The latest addition to the range is Vitrage (dB), a stylish double-glazed system, which is ideal for applications where acoustic performance is paramount. Sound reduction of up to 47 dB (Rw) can be achieved, whilst retaining the spacious, visual simplicity of glass.

Using either 10/10.8mm or 12/12.8 mm toughened/acoustic glass, depending on the height of the partition, glazing is achieved with the use of standard Tenon crystal clear glazing gaskets that remove the need for use of silicone around the perimeter of the system.

Vertical silicone joints maintain the visual simplicity of the product, whilst crystal clear plastic jointing sections may be used to provide dry joints between glass panels.

Why choose Vitrage partitioning?

  • Frameless glazed partitioning
  • Double & single glazed options
  • Excellent acoustic performance up to 47 dB (Rw)
  • Attractive & stylish design
  • Integrates with Tenon 77mm fire and sound partitioning
  • Full range of manifestation options
  • Wide range of profile colours

To maintain the open feel of the product, frameless doors are fitted within the system using floor pivots and patch fittings or floor springs if required. If standard timber veneered doors are required these are accommodated within the Tenon 77mm Fire and Sound range of doorframe profiles, which are fully compatible with Vitrage sections.



Where desired, or in order to comply with building regulations, fully glazed panels may have manifestation films applied to them. These can be used to simply highlight the presence of the partition, create individual designs or incorporate logos. Tenon 77mm Fire and Sound solid walls can be integrated with either single or double glazed Vitrage.



Vitrage aluminium framing sections are available in a range of standard colours:

RAL 5010 Gentian Blue
RAL 5012 Light Blue
RAL 6005 Moss Green
RAL 7011 Iron Grey
RAL 9005 Jet Black
RAL 9006 Silver

RAL 9010 Pure White
RAL 9016 Traffic White
BS 00 A 05 Light Grey
BS 04 E 53 Geranium Red
BS 08 B 15 Magnolia
BS 08 B 29 Van Dyke Brown
